Pixel Pitch P2.6/P3.9 High Brightness Transparent LED Display

Basic Info.

Model NO.	P2.6
System Operating Platform	All
Display Type	LED Video Display
Application	Advertising, 4s-Stores,Window Shop
IP Rating	IP4X
Certification	RoHS, ETL, FCC
Transport Package	Moveable Flight Case or Wooden Case
Specification	960*640mm 8-10KG/pcs
Trademark	Keasy
Origin	Shenzhen China
HS Code	8528591090
Production Capacity	1200sqm/Month

Product Description

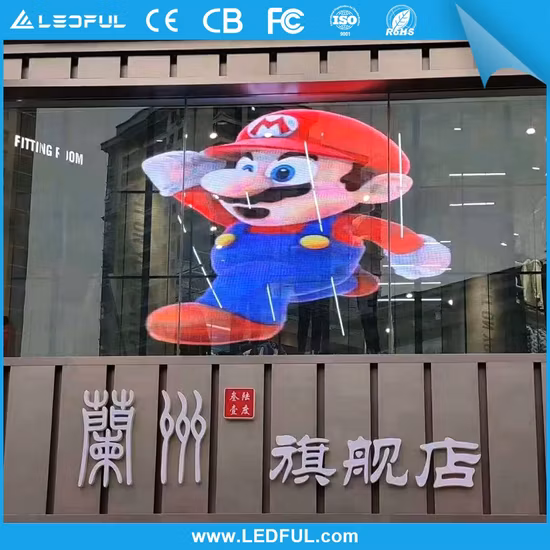

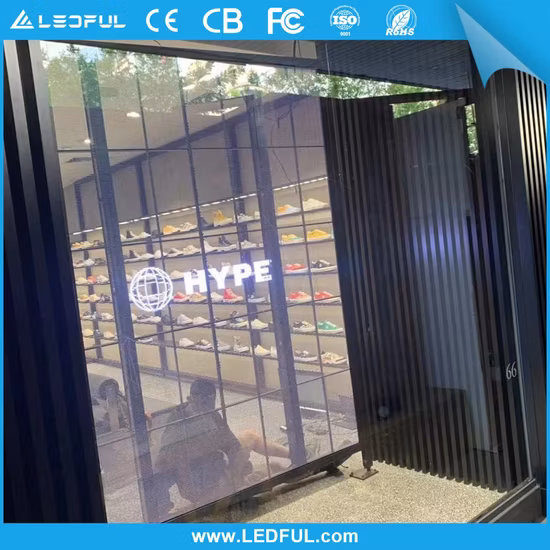

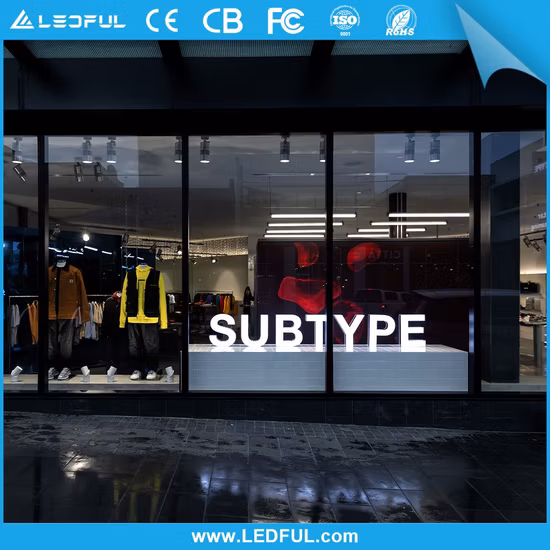

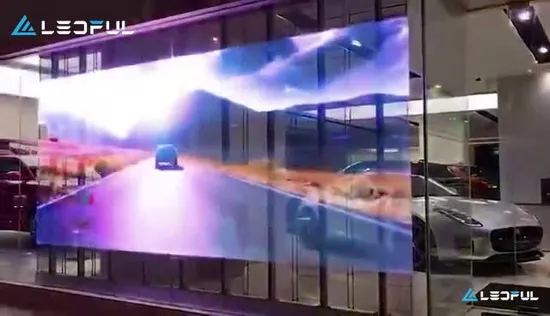

Window shop full color high brightness LED display screenApplication
Building glass-walled,bank,supermarket,vitrine,4S-stores,shopping malls,business street, hotel, Science Museum,theater
Product feature

1. feature light weight and slim profile,combines flat strength and precision
2. Back service with plug-in card,modular design system
3. High refresh rate,high gray scale
4. Place side of the LED light emitting pixels,automatic placement process,combines the process stability and high transparency rate
5. Linear LED light bar structure,easy to achieve one-way surface or multi-direction spherical shaped display.(customized)
6. Modular standard components(light bar) can be customized according to the size of the windowpane of the screen frame,perfect fit with the windowpane(customized)
7. Diversified installation method,no difference matching with point support and keel type glass curtain wall(or window).(Customized)
8. Fast lock system,seamless connection
9. High conductivity material,direct heat dissipation design,free-noise
10. high brightness,anti-UV,display pixel,indoor installation and outdoor watch,no longer worried about waterproof level

Technical Parameter

Window shop full color high brightness LED display screen
Item		K8159	K8175	K8110
Pixel pitch		5-6.67mm	7.5-8mm	10 mm
Module size(W*H)		480*320mm
Cabinet size(W*H)		960*640 mm
Cabinet resolution		192*96 Dots	128*80 Dots	96*64 Dots
Cabinet material		Extruded aluminum	Extruded aluminum	Extruded aluminum
Cabinet weight		10Kg	9Kg	8 Kg
Grey scale		14Bit	14Bit	14Bit
Refresh rate		1920 Hz	1920 Hz	1920 Hz
White balance brightness		5500 Nit	6000 Nit	6000 Nit
Horizontal viewing angle		140 degree	140 degree	140 degree
Vertical viewing angle		140 degree	140 degree	140 degree
Power consumption(Max)		1200 W/M2	1200 W/M2	1000 W/M2
Protection level		IP4X	IP4X	IP4X
Application scene		Indoor installed,outdoor watching
Work environment		-10…55ºC RH 10%…90%
Optical characteri-stics	Pixel configuration	SMD3528UV	SMD3528UV	SMD3528UV
	Minimum viewing distance	5.0 M	7.0 M	9.0 M
	Best viewing distance	5.0-45 M	7.0-55 M	9.0-75 M
	Pixel density	30000 Dots/sqm	16667 Dots/sqm	10000 Dots/sqm
	Max brightness	5500 Nit	5500 Nit	5500 Nit
Module characteri-stics	Voltage	AC95-240V	AC95-240V	AC95-240V
	Transparent rate	72%	75%	80%
	Drive mode	1/4S constant current	1/2S constant current	1/2S constant current
	Circuit scheme	high refresh rate, no ghost.	high refresh rate, no ghost.	high refresh rate, no ghost.
	MTBF	≥10,000h	≥10,000h	≥10,000h
	Lifespan	≥80,000h	≥80,000h	≥80,000h
	Pixel failure ratio	<3/100000	<3/100000	<3/100000

Package

Remark
1.Price term:Total quotation is based on FOB Shenzhen2.Warranty period: 2 years 3.Payment term: 30% deposit,Balance before shipping. 4.Packing method: Flight case or wooden case5.Delivery time: 20 -30days after deposit
